1) Fast speed, which can scan more than 14,400 points per second.
2) Volume error control within five thousandths.
3) stable quality, original imports, European quality and reliable quality.
4) simple operation, Chinese software interface, only one key on site to scan the object, compact and small structure.
5) can automatically noise reduction filter, can automatically generate the user's required format of the disk coal report.
6) wireless data interface, can be connected to any smart phone, can be used to control the instrument and record the scanning data all operations by cell phone or laptop.
7) Rich data format, point cloud can be exported to any format (VRML.DXF.PLY.CSV.XYZ.ASC, etc.) that users need to facilitate the processing of data with any software in the industry. |
In the field of power plants, steel mills and coal mines, there is often a demand for shed coils, which are difficult to measure because of their large size and irregular shape, and this equipment solves this problem. The
scanner measuring range up to 260 meters. The scanner scanning speed is fast, only a few minutes to scan once, can greatly improve the efficiency of the power plant, saving labor and creating benefits.

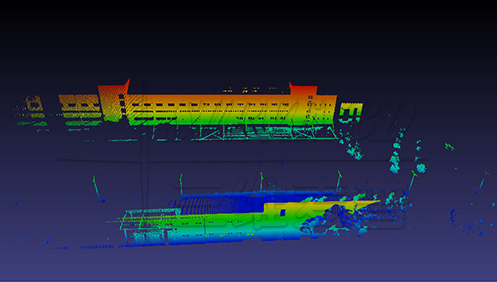

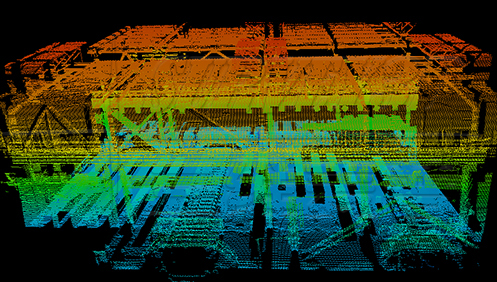

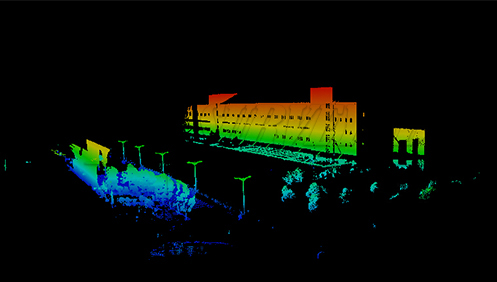

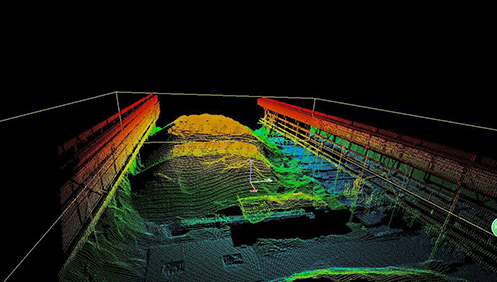

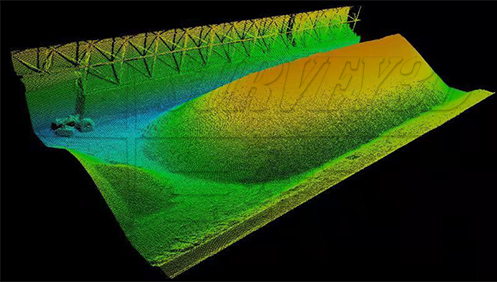

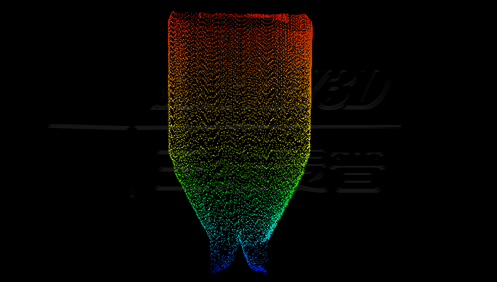

A261 The equipment can be used for silo scanning, also can be used for scanning in the coal shed, a number of installation, simultaneous joint measurement, real-time point cloud data. The 3D laser scan directly collects various large, complex, irregular entities or live views into the computer completely, and then reconstructs the 3D solid model of the coal pile quickly. After the scanning is finished, the computer synthesizes and processes the data obtained by the 3D laser scanner, establishes a digital model of the coal field surface using digital fitting technology, calculates the volume of the coal pile according to the volume integration principle, and draws a three-dimensional figure of the coal field according to the digital model. The calculated volume number is then multiplied by the specific gravity of coal to be the coal storage volume of the coal field. |
